SMT LED PCB Assembly Semi Automatic SMT Solder Paste Screen Printing Machine PCB Printer

Overview

Basic Info.

Model NO.	SD-5088L
Transport Package	Wooden Case
Specification	1060* 780* 1650mm
Trademark	SD
Origin	China
HS Code	8486209000
Production Capacity	10000

Product Description

Product introducion

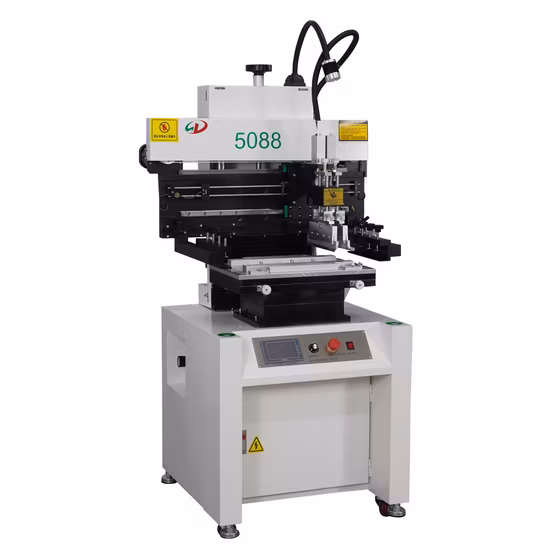

5088L SMT Solder Paste Printing Machine

Features:

1. Microcomputer control, touch screen display, menu operation interface;
2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4. Equipped with frequency converter speed regulation system, scraper running speed is stable;
5. Operation with two-hand button switch, safe and reliable;
6. The pause time of the entire stencil can be independently set in the touch screen menu;
7. Positioning and fixing methods of PCB board include positioning of reference hole, positioning of reference edge, simultaneous positioning of reference edge of reference hole and template, etc.;
8. The touch screen is equipped with time display function, automatic counting function of printing times and screen protection function;
9. Equipped with scraper speed adjustable function and emergency stop safety function;
10. Printing mode: single, double and secondary startup (menu setting is optional);
11. Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional);
12. Large cast-iron bench works smoothly without shaking.

Technical Parameters:

Model	5088L
Direction of movement	Move left and right
Workbench	700*320mm
Power Supply	Single phase 220V
Dimension	1060*780*1650mm
Air Supply	0.5-0.8mpa
Starting Power	0.2KW
Weight	About 200KG
Steel mesh clamping device	Manual locking(thin cylinder clamping steel mesh is optional)
Printing Range	600*320mm
Moving Motor	Three-phase motor 60W
Moving Speed	0-2200mm/min
Rail	Taiwan silver linear guide
PLC Control	Siemens
Touch Screen	4.3# display control screen
Main Cylinder	SC63*150
Cutter Head Cylinder	CDU25-50
Frequency Converter	ENC
Floodlight	LED light

Product Description

Maintenance and repair
(1) High temperatureThe machine is easy to malfunction in the high temperature environmentthus affects the production. Manufacturers do not know the cause of thecase that is mechanical damage, only normal use, attention tomaintenance and micro-repair, these mechanical failure control.(2) Voltage problemAfter-sales service manufacturers often encounter customer response tomechanical failure, such as mechanical heating can not work, unable torotate control display instability. The causes of the above failures, inaddition to a few poor quality, most of the voltage is not enough, capacityis not enough, line aging and lead to imbalance between circuits. If it isnot repaired in time, the machine will burn out.(3) Professional maintenanceEquipment professional electrical maintenance personnel, regularmaintenance and repair of machinery. Can also be under the guidancof manufacturers to do a good job in the daily maintenance and regulamaintenance of machinery.

FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
