Q3710 Hook Type Shot Blasting Machine for Metal Rust Cleaning

Basic Info.

Model NO.	Q3710
Automation	Automatic
Certification	CE, ISO9001, ISO10004, BV, TUV
Feature	Critical Cleaning / Residue Free
Condition	New
Customized	Customized
Machine Type	Abrator
Usage	Mechanical Engineering
Cleaning Process	Shot Cleaning
Principle	Physical
Clean Type	Shot Blasting
Hook Load Capacity	1 to 5 Tons
Physical Machine Type	Mechanical Cleaning Method
Style	Swing Style
Color	Named Color
Energy	Electricity
Transport Package	Container
Specification	Customized
Trademark	Antai
Origin	Shandong
HS Code	8424
Production Capacity	100 Set/Sets

Product Description

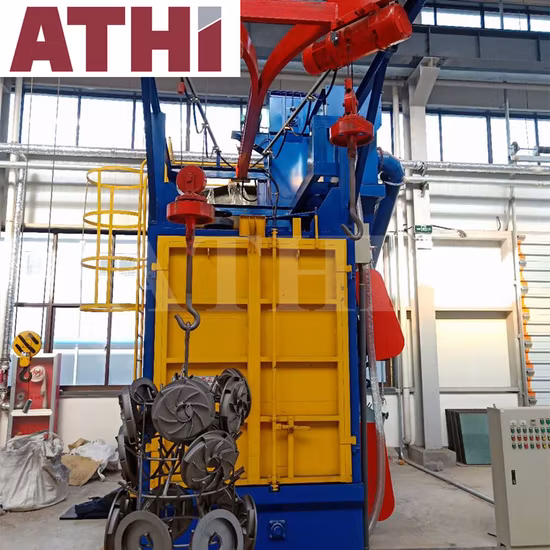

QD376 QD378 QD3710 hook type shot blast cleaning machine for metal structural casting parts
Products Description
Hook shot blasting machine is widely used in foundry plant, forging plant. Metal processing.Products Features: This series hook type shot blasting machine is mainly used for surface cleaning of casting structure nonferrous alloy and other parts.This series shot blasting machine have many types such as single hook type double hook type.Shot blasting of casts, welded constructions, forged and pressed parts, and various complicated parts (including cylinders, springs), etc. To clean surface, removing casting sand & filings, consolidating the surface (micro handling), roughing the surface before painting, etc.Pretreat objects are individually or in a group hanged to the revolving hoist and transported to the machine via conveyor. Rotating of treated objects provides efficient treatment of less accessible parts of their surface. The machine's housing is protected by wear-resistant rubber and Rolling Mn13.Machines may be produced through order, with customized size, quantity and power of turbines, the hanging conveyor type, rotating hangers capacity. The hoist and trolley drive may be manufactured in accordance with the buyer's requirement.Overhead rail shot blast machines can be used for a wide spectrum of applications and workpiece shapes and sizes.Hook (spinner hanger) type shot blasting machine is mainly used for Smaller machines : Aluminum die-casting, Magnesium castings, small steel fabrications, rims/wheels, gears and technological treatments. Medium/Large machines : forges, foundries, steel structures, gears, heat treatments, electric transformers etc.Qingdao ANTAI hook (spinner hanger) type shot blasting machine are designed to clean parts hanging from an overhead conveyor and used for castings or large parts that cannot be tumbled. We offer various designs including flow-through, Y-track, continuous or in-line blast designs. Some advantages to our designs include: low head room required, low initial investment, complete blast coverage without damaging parts.Qingdao ANTAI hook (spinner hanger) type shot blasting machine are installations with operational flexibility, suitable for many types of work. The range of machines is very wide, so it is easy to identify the most suitable machine for any need. The functioning principle is the one of hanging the work-pieces (singly or collectively). The hook runs and rotates inside the machine exposing all the surface of the work pieces to the abrasive action from the wheels, positioned on the side of the blast chamber.Besides the size of the shot blast chamber, the function of these machines is the loading of the hooks.Characteristics• Versatile transport technology• Highly efficient blast wheels• Multiple machine sizes and variations availableApplications• Removal of mill and forge scale as well as rust• Removal of burrs and scales• Removal of moulding sand• Increase of surface roughness• Shot peening to increase fatigue strength Applications include blast cleaning welded steel fabrications, deburring and homogenising diecast parts, and peening dynamically stressed components. Batches of small components or singular large, heavy workpieces can be treated.
Technical Parameters

Type	Size of workpiece cleaned	Carrying weight of single hook	Capacity of shot-blasting	Lifting capacity of hoist	Separating capacity of separator	Ventilation capacity	Power(excluding dedusting)	Outline dimensions
	mm	kg	kg/min	t/h	t/h	m 3 /h	kw	mm
Q376	Ø600*1100	500	2*120	15	15	5000	23.5	4429*2850*3443
Q378	Ø800*1500	1000	2*250	30	30	8000	32.5	4325*2660*5009
Q3710	Ø900*1600	1000	2*250	30	30	9000	45.55	5047*3850*5156
QD3710	Ø900*1600	1000	2*250	30	30	9000	49.95	5844*2742*5716
Q3720	Ø1400*2300	2000	3*250	45	45	15000	61.27	6110*3599*7842
Q3730	Ø1600*2300	3000	3*250	45	45	15000	64.4	7085*4650*8652
Q3750	Ø1800*2500	5000	4*250	60	60	18000	78.4	7062*5460*8652
Q37100	Ø2000*3000	10000	6*250	90	90	20000	81.5	8050*6400*8526

If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
