Laser Navigation Material Handling Vehicle Forklift Tractor Agv

Overview

Basic Info.

Model NO.	AGV
Manufacture	Wuhan
Transport Package	Packaged to Order
Specification	other
Trademark	DLS
Origin	Wuhan
HS Code	8423301000
Production Capacity	5000 Set/Year

Product Description

We are commited to creat safe and stable quality product to all client and reach to Win-Win long term cooperationProduct Description

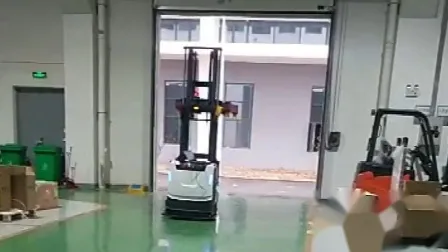

Automatic guided vehicle (AGV) is a portable robot that follows along lasers lidar for navigation. They are most often used in industrial applications to transport heavy materials around a large industrial building, such as a factory or warehouse

1	Model			AS20	22	Height of Fork from ground	H5	mm	86
2	Power			Battery	23	Total Length	L1	mm	2222
3	Navigation			Laser Lidar	24	Total Width	b1	mm	1090
4	Load	Q	kg	2000	25	Width of Body	b2	mm	1000
5	Load Center	C	mm	600	26	Size of Fork	s/e/l	mm	180/66/1150
6	Fork overhang	X	mm	730	27	Width of Fork	b3	mm	680
7	Axel Distance	Y	mm	1470	28	Distance from Ground (Min)	m	mm	30
8	Vehicle Weight		kg	1320	29	Stacking Aisle righ angle,pallet 1000X1200 a=200	Ast	mm	2640
9	Axel Load full(F/R)		kg	2310/1240	30	Turning Radius	Wa	mm	1830
10	Axel Load Empty(F/R)		kg	494/1055	31	Speed Full/Empty		km/h	4.6/5.2
11	Tire			Polyurethane wheel	32	Lifting Speed Full/Empty		mm/s	90/120
12	Driving Wheel	mm	mm	Φ230X82	33	Down Speed Full/Empty		mm/s	125/80
13	Driven Wheel	mm	mm	Φ82X70	34	Max.Gradeability (Full/Empty)		%	5/8
14	Auxl. Wheel	mm	mm	Φ125X60	35	Brake			E/M
15	QTY of wheel			1x-2/4	36	positioning accuracy		mm	10
16	Distance of Front Wheel	b11	mm	800	37	Safety Distance		mm
17	Distance of Rear Wheel	b10	mm	500	38	Driving Moto		kw	AC 1.5
18	Total height	H1	mm	See Mast	39	Lifting Moto		kw	DC 3.0
19	Free height	H2	mm		40	Lithium battery		V/Ah	24/200(200\240\280)
20	Lift height	H3	mm		41	Weight of Battery		kg	200\205\295
21	Max.Height	H4	mm		42	Noise		dB(A)	<70<>

<70<>Detailed PhotosCertifications
